Heavy Duty Laser Cutting Machine
Heavy Duty Laser Cutting Machine
General Description
The series of laser cutting machines is developed by SMAC Intelligent for the actual needs of the sheet metal processing industry. lt is mainly used for ordinary carbon steel , stainless steel , aluminum alloy, copper,plates, etc.The machine bed is welded as a whole, annealed to eliminate internal stress, and after rough machining, vibrating and aging, and then finishing, which greatly improves the rigidity and stability of the machine tool and ensures the accuracy of the machine tool. So that after Long-term operation of the machine, the machine base will not be deformed or cracked
The smoke exhaust design of the machine adopts negative pressure and partitioned design to exhaust smoke. lt can ensure that the laser head will not be affected by the smoke inside the machine cover.

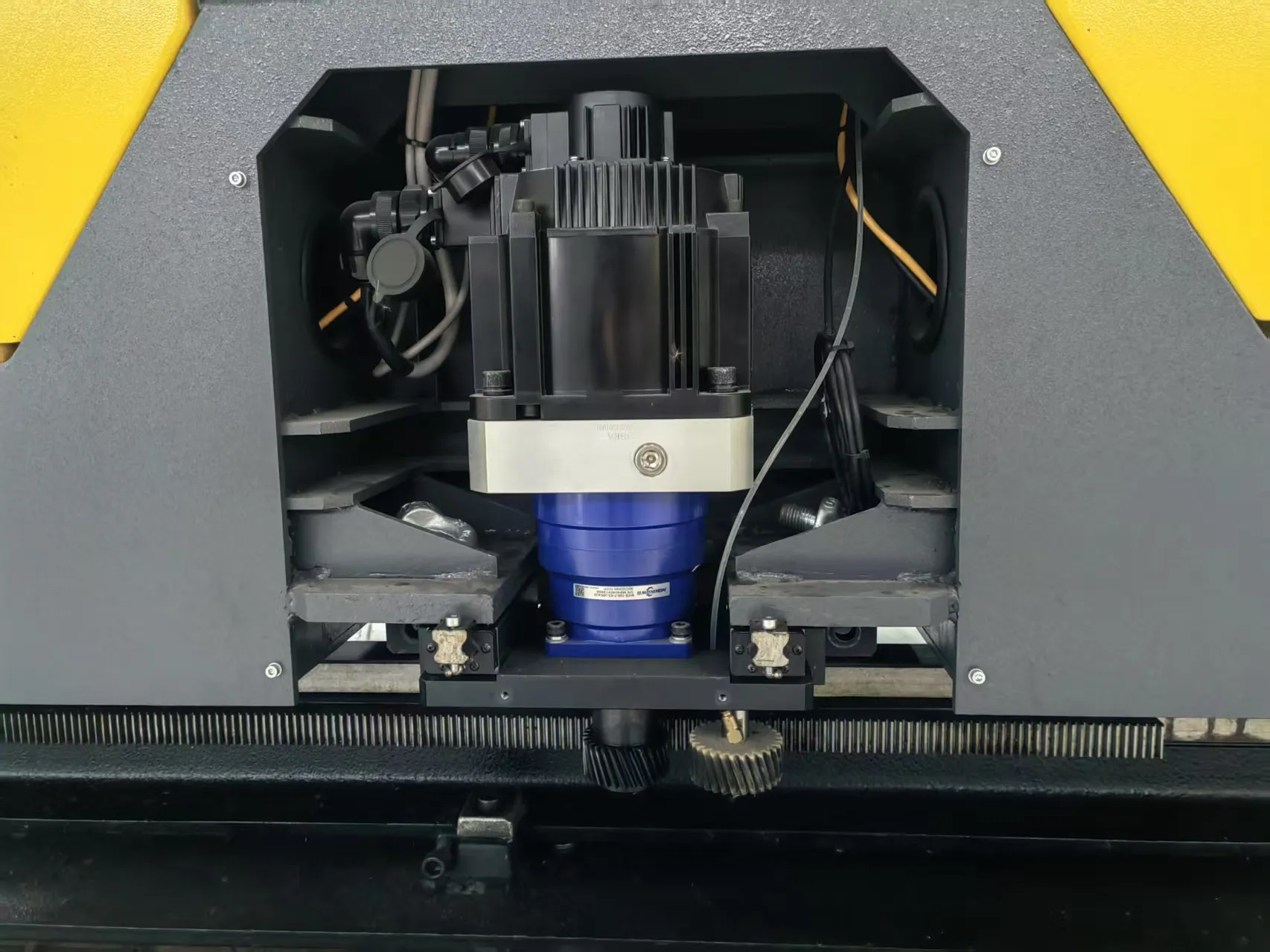

The installation process of the mechanical parts such as the guide rail and the rack is all involved with the laser interferometer, and the installation accuracy can reach 0.01mm.
Technical Specifications

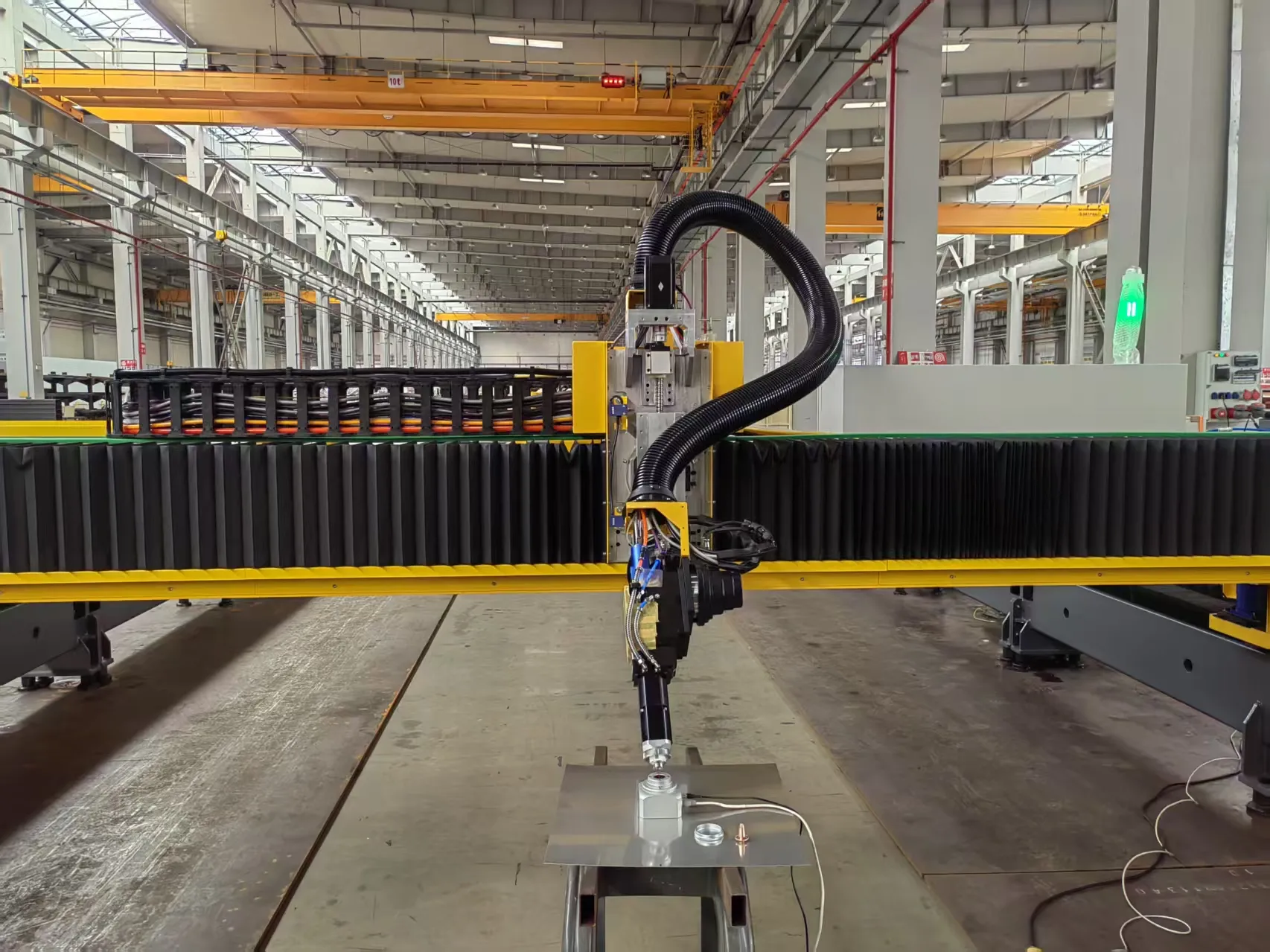

GANTRY TYPE FIBER LASER CUTTING MACHINE FOR LARGE PLATE
| Model | SMAC-30 | SMAC-35 | SMAC-40 | SMAC-50 | SMAC-60 | SMAC-80 |
| Effective Cutting Size(X) | 12000/24000/26000/30000/40000mm | |||||
| Effective Cutting Size(Y) | 3100mm | 3600mm | 4100mm | 5100mm | 6100mm | 8100mm |
| Single axis maximumpositioning speed(X/Y) | 24m/min | 24m/min | 24m/min | 24m/min | 24m/min | 24m/min |
| Single axis maximumacceleration(X/Y) | 0.2G | 0.2G | 0.2G | 0.2G | 0.2G | 0.2G |
| Repeatpositioning accuracy | ±0.15mm | ±0.15mm | ±0.15mm | ±0.15mm | ±0.15mm | ±0.15mm |
GANTRY TYPE FIBER LASER CUTTING MACHINE FOR LARGE PLATE
Wide processing range:unlimited extension of the processing range,machine tool guide rail unlimited extension,multiple sheets of synchronous cutting,suitable for large surface,thick plate into batch plate processing.,Fast processing speed:High speed advantage of the medium and thin plate can significantly improve the processing efficiency,the first choice of thick plate large surface plate cutting intelligent equipment.Double head cutting can be configured:can be matched with double laser cutting head,double cutting efficiency,to meet the customer 24h non-stop continuous cutting.
GANTRY TYPE FIBER LASER CUTTING MACHINE FOR ULTRA-HIGH LASER POWER
| Model | SMAC-30 | SMAC-35 | SMAC-40 | SMAC-50 | SMAC-60 |
| Effective Cutting Size(X) | 12000/24000/26000/30000/40000mm | ||||
| Effective Cutting Size(Y) | 3100mm | 3600mm | 4100mm | 5100mm | 6100mm |
| Single axis maximumpositioning speed(X/M) | 50m/min | 50m/min | 50m/min | 50m/min | 40m/min |
| Single axis maximum acceleration(X/Y) | 0.5G | 0.5G | 0.5G | 0.4G | 0.3G |
| Repeatpositioning accuracy | ±0.1mm | ±0.1mm | ±0.1mm | ±0.15mm | ±0.15m |
GANTRY TYPE FIBER LASER CUTTING MACHINE FOR ULTRA-HIGH LASER POWER

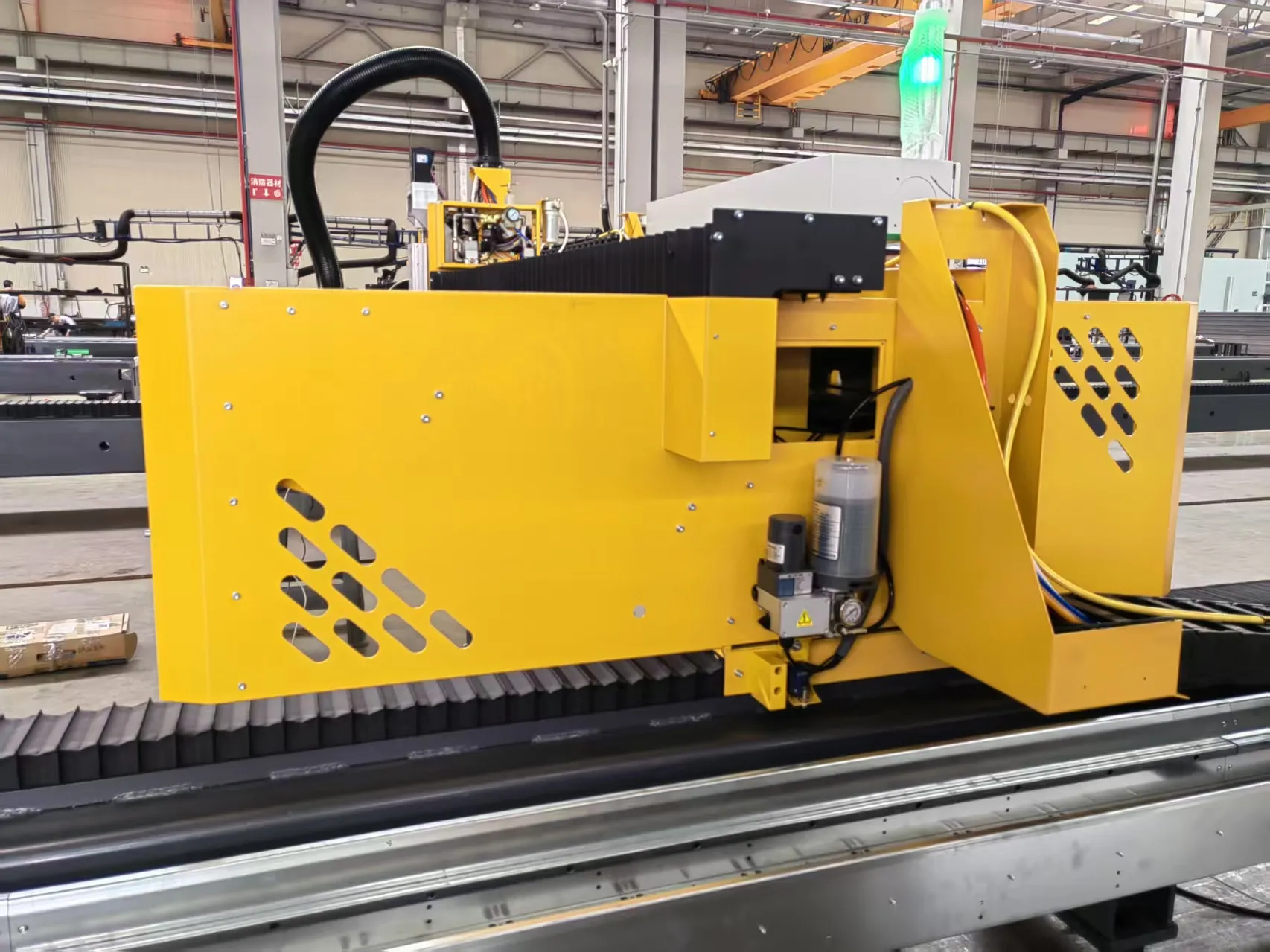

– High flexibility cutting: Heavy-duty aluminum alloy crossbeams combined with the high-precision modular bed has industry-leading acceleration and dynamic performance.
– High efficiency machining: The positioning speed can reach up to 50m/min and the maximum acceleration can reach 1G. It can maximize the high-speed cutting ability of ultra-high power lasers of 20kW and above.
– High precision machining: achieve high-precision machining, finely cut complex and precise parts, Reduce cutting errors and subsequent processes.
GANTRY TYPE FIBER LASER CUTCUTTING MACHINE FOR H BEAM(UP TO 30KW)
Model | SMAC 26020 |
Postioning Accuracy | ±0.1mm/m |
Repeat Postioning Accuracy | ±0.1mm |
XNAxis MaxAcceleration | 0.1G |
Postioning Speed | 30m/min |
LaserPower Option | 12KW/20KW/30KW optional |
H Beam Size or Diameter | H-Beam1.25m*0.6m*26m Length(single),1.25m*0.6m*12m(double) |
GANTRY TYPE FIBER LASER CUTCUTTING MACHINE FOR H BEAM(UP TO 30KW)
– Larger Cutting Size: Largest size for H beam processing can be reach as 1.25m*0.6m*26m Length(single), 1.25m*0.6m*12m(double)
– High Machining Accuracy: The well-designed high-precision and high-rigidity transmission system makes the equipment to have excellent motion rigidity under a upgraded optimal centripetal force. Z Axis plate is casting alloy, with a high rigidity and light-weight feature, so it can help machine to achieve a faster positioning speed and higher accuracy. Bolts hole for H-beam can be cutting precisely when it can combine with reducer, rail, gear and some other centripetal.
– High-Level Safety: enlarged protective shield can multiple block out laser scattering. Also equipped with laser curtain, high-speed electric relay, 3 line HD video monitor and Hard Disc Recorder.
– High Performance: 0.5G speed acceleration, 24m/min positioning speed.

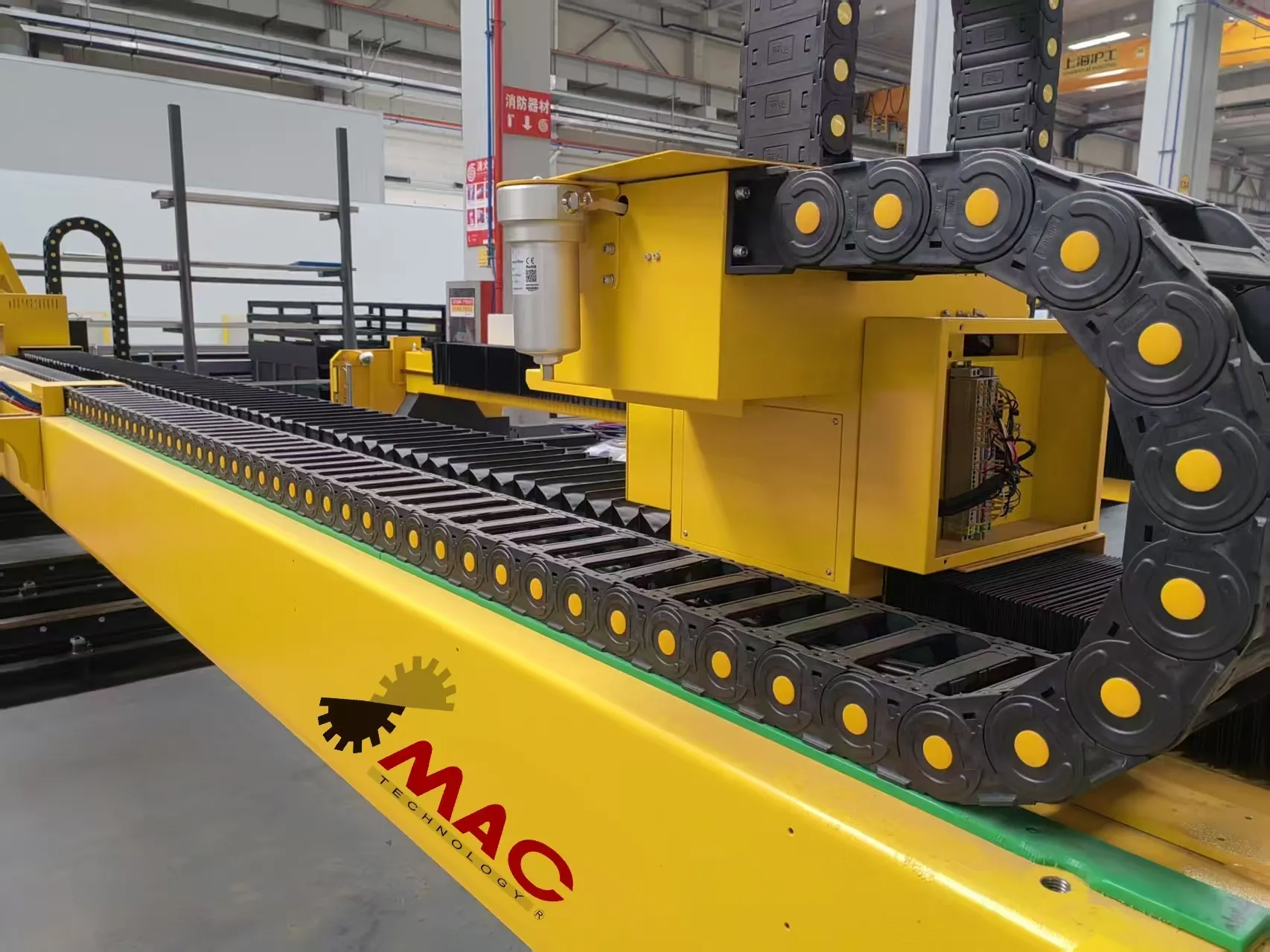

– Strong Reliability: with a reasonable circuit line lay-out and drag-chain system, machine can avoid any friction and unwinding so that it will keep be working under a stable situation.
– High Efficiency: comparing with traditional complex process in many machines, beam cutting machine can finish the whole of processes as cutting beveling, cutting-off, welded hole-making, marking at only one time once beam steel was fixed into processing area, it almost save 50% labor cost.
– Intelligence: with BCW laser contour scanner, the machine can scan out any smallest size distance and smallest shape change of raw material, and make it up by scanner during the process.
– Convenience Usage: perfectly connect with Tekla software used in steel structure filed, auto-identify, auto-depart, so that avoid more CAD and Nesting procedure.
– High Precision Machining: one time loading and dispatch, without unnecessary working, H beam raw material can be exactly cutting very precise with very tiny slitting and accurate hole-making size, so that can avoid some rework and repair when beams was splited together.
FIBER LASER CUTTING MACHINE FOR MULTIPLE PIPELINE
| Model | P1-6022 |
| xNpositioning accuracy | ±0.05mm/m |
| XNrepeating accuracy | 0.03mm |
| XNmaxmoving speed | 50m/min |
| XYMaxacceleration | 0.8G |
| Baxis maximum rotating speed | 60rpm |
| MAXpipe thickness | 12mm |
| MAXpipelength | 6000mm |
| Pipe diameter | Round pipe20-220mm;square tube 15x15to 150x150mm |
| MAXworkpiece length | ≤1000mm |
| MAXloading weight | 250kg |
FIBER LASER CUTTING MACHINE FOR MULTIPLE PIPELINE
– Integrated high-precision pneumatic chuck: The gear ring is sealed in the chuck base processed by precision CNC, with long-lasting and stable accuracy and high repeatability.
– The rotating part is a high-strength aluminum base with small Moment of inertia and high response speed.
– The front chuck has a full stroke design, no need to reinstall the claw when switching between different pipe diameters.
– Standard pneumatic pipe support device: It is convenient to load raw materials, restrain high-speed cutting jitter of thin pipes, and improve cutting accuracy and section quality.
| Model | P3-6032/12032 |
| XNpositioning accuracy | ±0.05mm/m |
| XNrepeating accuracy | 0.03mm |
| XNmaxmoving speed | 60m/min |
| XYMaxacceleration | 0.5G |
| Baxis maximum rotating speed | 100 rpm |
| Max pipe diameter | 240/280/320/360 |
| MAXpipe thickness | 12mm |
| MAXpipelength | 6100mm/12100mm |
| Pipe diameter | Round pipe20-320mm;square tube 15x15to 320x320mm |
| MAXworkpiece length | ≤4000mm |
| MAXloading weight | 400kg |
HEAVY DUTY FIBER LASER CUTTING MACHINE FOR MULTIPLE PIPELINE
– Servo follow-up support device with automatic avoidance function has been specially designed for the processing of slender pipes, which can effectively suppress the shaking caused by high-speed rotation of pipes and improve cutting accuracy.
– Optional semi-automatic feeding device: multiple pipes are arranged in the feeding machine in advance, the cutting machine will control the feeding machine to automatically load raw materials according to the task progress. Realize semi-automatic continuous cutting.
– Optional beveling function: Equipped with various cutting functions such as cutting, opening hole, and Beveling for irregular pipes.
HEAVY DUTY FIBER LASER CUTTING MACHINE FOR LARGE PIPELINE（UP TO 40KW）
| Model | CNCG SERIES |
| Laser power | 3KW/4KW/6KW/12KW/20KW/30KW/40KW optional |
| Round Tube Processing Range | DIA100~1000mm |
| Square Tube Processing Range | 100~400mm |
| Maximum tube length | 20000mm |
| Max.positioning speed ofone axis(X\Y) | 30m/min |
| Positioning accuracy(X\Y) | ±0.05mm |
| Re-positioning accuracy(XY) | 0.05mm |
HEAVY DUTY FIBER LASER CUTTING MACHINE FOR LARGE PIPELINE（UP TO 40KW）
– Laser cutting: In addition to the straight cutting mode, it can also cut accurately, coherent holes, saddle mouths, intersections, curved mouths and V-type Y-type welding bevels and others. The maximum power is up to 40Kw.
– Five-axis linkage RTCP function: Realize five-axis linkage complex mouth cutting through RTCP algorithm and AIB-axis interpolation, which greatly improves the processing precision and efficiency and greatly reduces the interference problems that may arise during the cutting process.
– Large load design: the maximum load can be up to 2000kg, covering a variety of large-diameter pipe cutting needs.
– Ultra-thickness cutting: Cutting thickness ranges from 3-40mm to meet the precise cutting needs of large-diameter long work piece.
– High-rigidity and high-precision moving beam: welded with high-quality carbon steel, annealed and processed in two steps to create a high-rigidity, high-precision and low-weight moving beam.
– Intelligent automatic sampling software: provides a number of functions such as pipe cutting layout, parts import, array, common edge, sorting, process compensation and so on.
