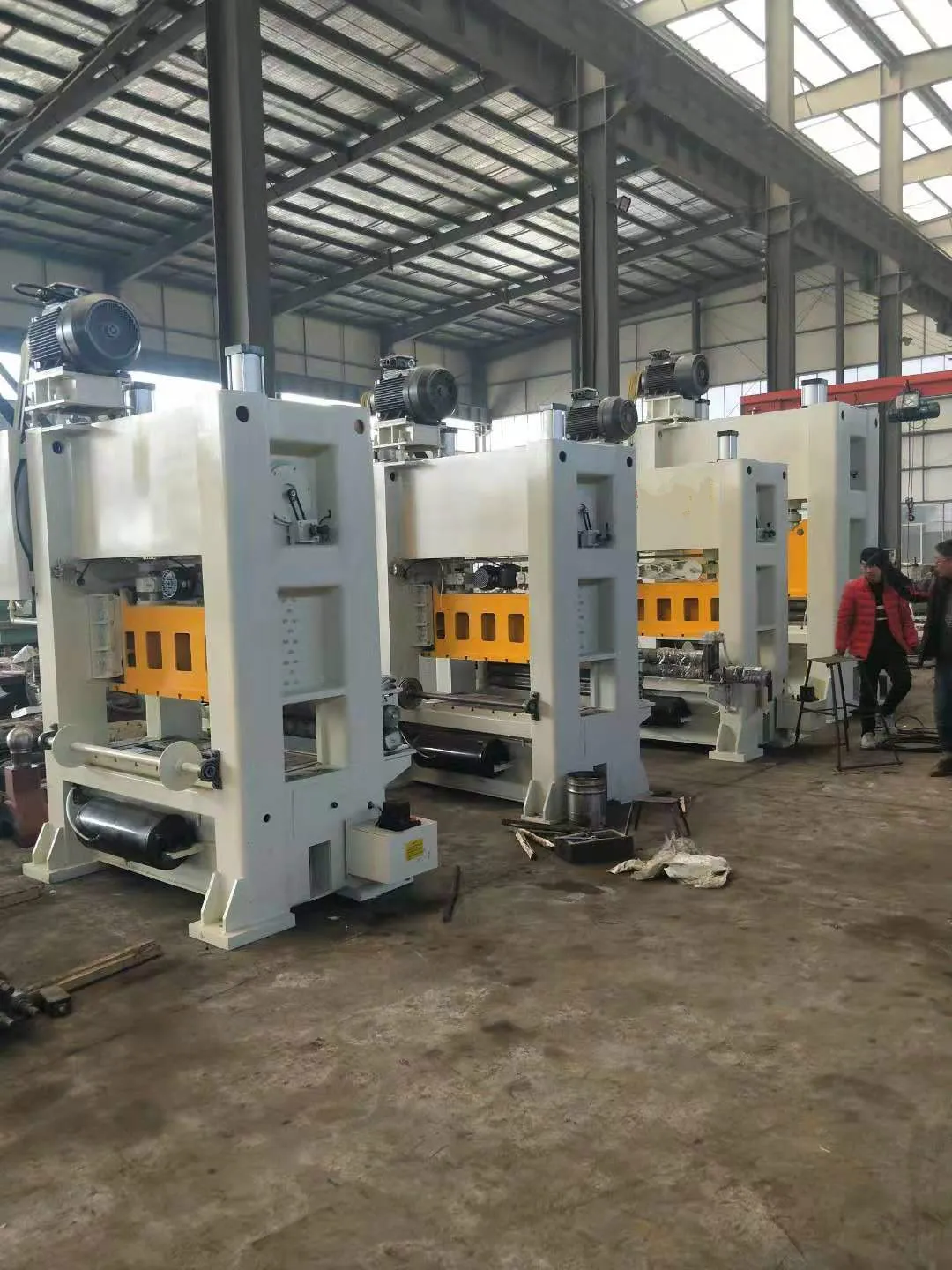

Perforated Metal machine line-VEST

Perforated Metal machine line-VEST

Enclosed specification

Equipment Name1300mm auto coil Feeding line
Model NoHW1-1300-10T
ConfigurationConventional system Single End Reel.
Max. coil weight10Tons.
Minimum/Maximum coil I.D570~630 (610)mm
Minimum/Maximum coil O.D.800~1400mm
Minimum/Maximum stock width100~1300mm
Material thickness@Max. width (GI)0.5-1.2mm@1250mm
Material width@Max. thickness (GI)1200mm@0.5-1.2mm
Accuracy at feed length – to within plus/minus0.1mm
Max. feed length0 to 9999.99mm
Input power supply380v,3 ph, 50 hz.
Input air supply
5.5bar

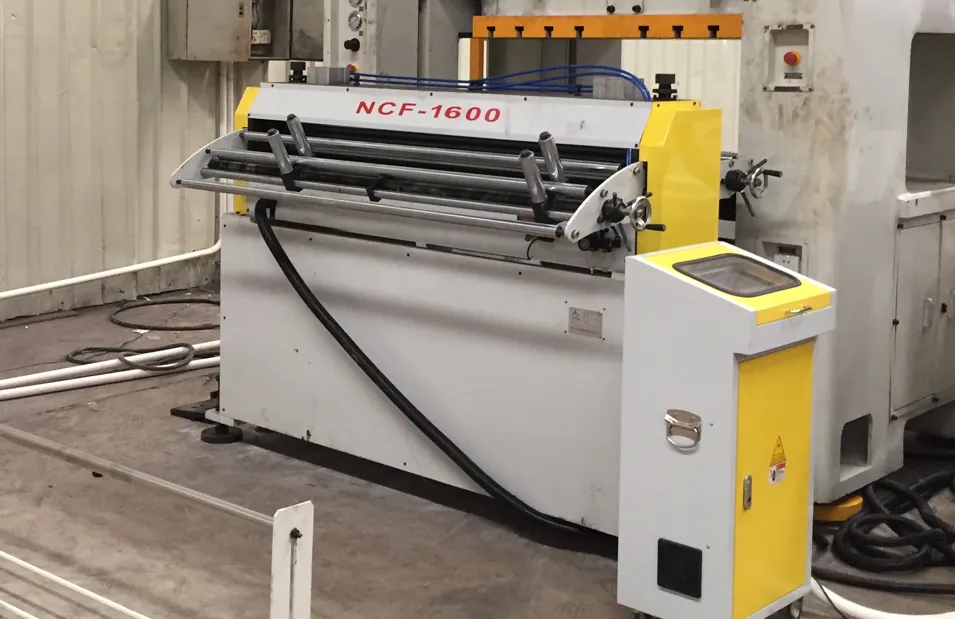

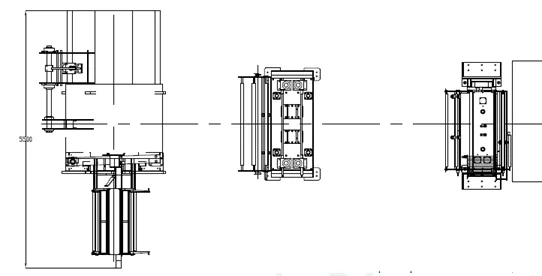

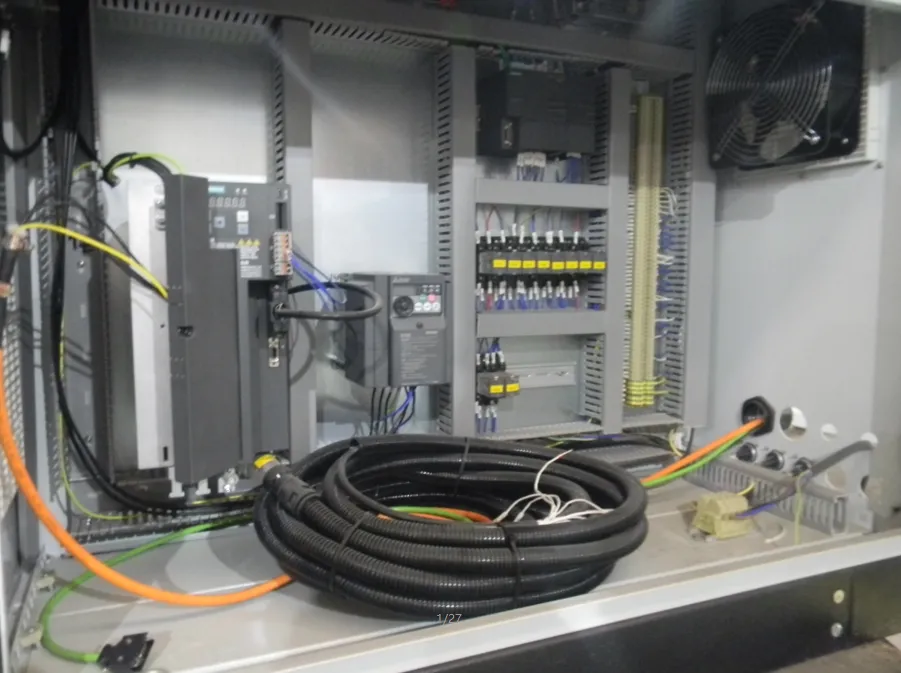

Main Components

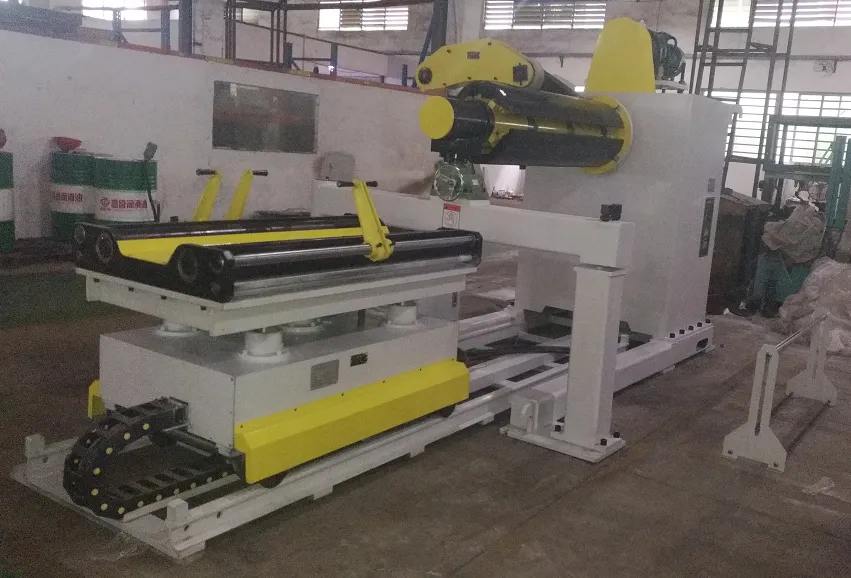

Heavy Uncoiler

Uncoiling is to fix coil on the spindle of uncoiler, a supporting table to support coil Inner diameter, while working automatically, through material loop controlling instruction to make spindle uncoiling and loosing coil intermittently, equipped with coil diameter detection, to control uncoiling speed, ensure uncoiling line speed is uniform velocity, improved material loosing problem.

Components included:expansion and contraction part, press arm part, spindle support parts, material loop controlling part.
Material width:100-1300mm
Coil weight:10T (Max.)
Coil OD:Φ800mm~Φ1400mm
Expansion method:hydraulic expansion
Spindle expansion range:Φ570-Φ630mm
Spindle driven motor:AC motor, with inverter
Spindle driven method:Variable frequency gear motor
Spindle brake:disc brake
Spindle uncoiling direction:down uncoiling
Press material wheel specification:PU rubber tires

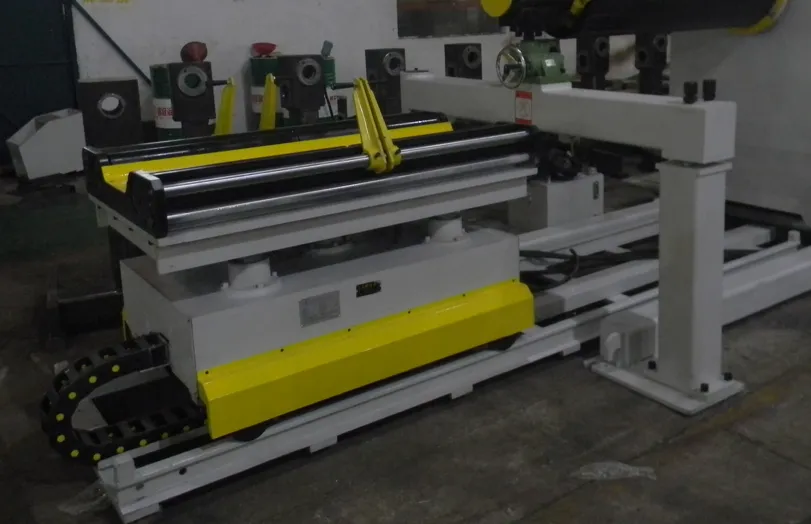

Loading car part

Be used for moving coil to spindle of uncoiler smoothly, while uncoiling and entry the material head into feeder, it is used for supporting material head to let it entry into straightening roller smoothly, loading car is equipped with backup plate to prevent coil slipping off from loading car while moving little big distance, while hanging coil.

Loading capacity:10T
Loading car moving method:hydraulic motor
Loading car lifting method:hydraulic method(controlled by pressure retaining valve, stable and reliable).
Moving method of backup plate for preventing slipping down:by manual
